1. Overview

The wall-penetrating mixer comprises transmission components, an impeller, a sealing chamber, etc. Its working principle involves using an external power source to rotate the impeller inside a sealed container through a transmission shaft, enabling solid-liquid-gas mixing to prevent solid settling.

2.Application

      ●  large tanks

      ●  reactors

      ●  Other containers requiring mixing

3.Characteristics

●  This equipment employs a reducer and gear transmission system, ensuring smooth operation without affecting the mixing vessel or its structure.

●  The power components and sealing elements are designed externally, facilitating maintenance without emptying the tank. Particularly suitable for high-temperature, highly corrosive, and high-concentration liquid environments.

●  Equipped with multiple sealing layers and a leakage plugging device, it enables seal replacement without draining the tank, ensuring safer and more reliable operation while simplifying maintenance.

•

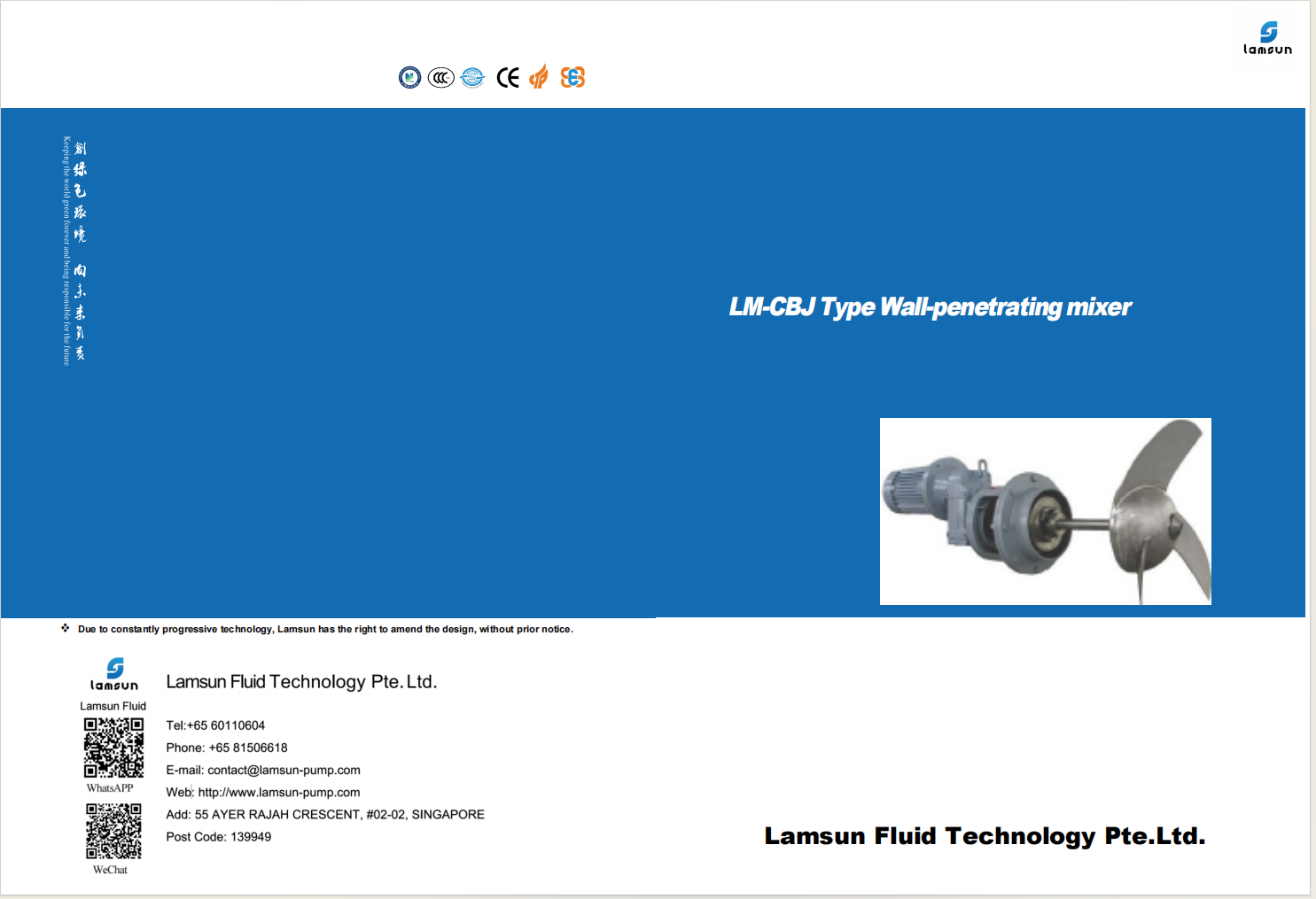

  LM-CJB-Wall-penetrating mixer

  Download

• How does a wall-penetrating mixer work, and what are its key advantages?

  • The mixer operates by using an external power source to rotate an impeller inside a sealed container via a transmission shaft. Its core advantages include non-disassembly maintenance (thanks to external power/sealing design), multi-stage sealing for leak prevention, and compatibility with high-temperature, highly corrosive, or high-concentration liquid environments.

• Does the mixer require draining the tank for maintenance?

  • No. Its multi-seal system and leakage plugging device allow seal replacement without draining the tank, minimizing downtime and ensuring continuous operation in critical processes like chemical mixing or slurry handling.
